- Edwards BE, Engheta N, Evoy S. "Theory of simultaneous control of orientation and translational motion of nanorods using positive dielectrophoretic forces.” Journal of Applied Physics (98), 124314, 2005. (pdf)
- Edwards B, Mayer TS, Bhiladvala RB. "Synchronous electrorotation of nanowires in fluid" Nano Letters (6) 2006.
- Edwards B, Engheta N, Evoy S. "Electric tweezers: Experimental study of positive dielectrophoresis-based positioning and orientation of a nanorod" Journal of Applied Physics (102) 2007. (pdf)
- Edwards B, Engheta N. "Electric Tweezers: negative dielectrophoretic multiple particle positioning" New Journal of Physics (14) 063012, 2012. (pdf)
- Edwards B. "Electric Tweezers: Arbitrary Dielectrophoresis Based Positioning and Orientation of Sub-Micron Particles" Dissertation, 2009. (pdf)
The Electric Tweezers is a technology that can be used to apply arbitrary forces to cell sized objects. The goal is to perform much of the same functionality of Optical Tweezers in that it maneuvers particles without actually touching them. It is similar Magnetic Tweezers, ABEL and Fluidic Drag manipulation in that it is based on long-range forces and a feedback mechanism. It employs electro-orientation to apply an orienting torque and dielectrophoresis to apply a force. While a tremendous amount of work has been done in the past with dielectrophoresis, it has all been to produce motion in a single, non-reversible direction. This is what makes the Electric Tweezers unique. By surrounding one or more particles with an array of electrodes, the Electric Tweezers calculates the voltage that is needed on each one to create the force and orientation that the operator desires. Additionally, the Electric Tweezers works with any microscope with video output.
The physics and mathematics behind calculating the electrode voltages in order to make a set of particles do what we want has been discussed in my papers and dissertation. However, without getting bogged down in too many details we'll summarize the basic idea:
1. When there is an electric field applied across a small particle, it will tend to orient to minimize its potential energy. For a positively polarized particle like a gold nanorod in water, this will align it with the electric field. Therefore, we can control the orientation of a particle by controlling the angle of the electric field at the particle's location.
2. The particle will also attempt to minimize its potential energy in space, which for a positively polarized particle like a gold nanorod, means moving in the direction of the greater electric field. For negatively polarized particle like a glass bead, this means moving in the direction of the lesser field. Therefore we can control the force on a particle by controlling the way the electric field changes in space.

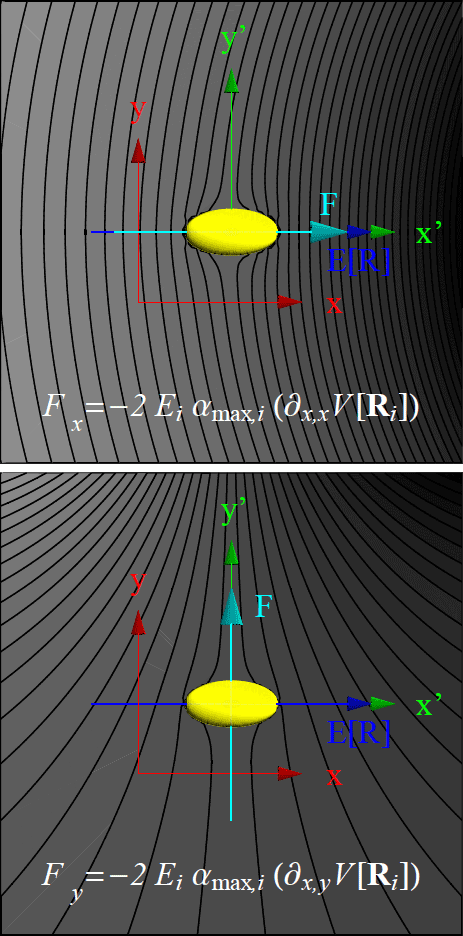

3. Both of these conditions can be expressed in terms of the local derivatives of the voltage field at the location of the particle which in turn puts constraints on the voltages that can be applied to the electrodes. A computer then finds the minimum voltages that satisfy these constraints, making the particles do exactly what we want.
The surrounding plots and movies show some examples of what this might look like. The lines of constant voltage shown in black. The electric field (E) is perpendicular to these lines. Additionally in the field quantity -|E|2 is plotted below in color. The gold rods will tend to want to "roll down-hill" on while glass beads would "float up-hill" in these plots.
Even though this was an academic project, my goal was to build it out to be a commercial device. This had less to do with making money (not that there's anything wrong with that), and more about making an impact. This project involved numerous skills such as real-time image processing, linear algebra, electromagnetics, PCB design, etc. It isn't easily recreated despite the fact that the final product is a fraction of the costs of Optical Tweezers. Being that it is a purely electronic/software based device, it is very difficult to build the first one, but once the design is complete, additional devices can be made for a fraction of the cost. With this goal in mind, this has a much more polished appearance than many dissertation projects.
The device consists of a board of synchronous bipolar square wave generators. The challenge was that they needed to be bipolar, covering an amplitude of 10V to -10V with frequencies from 60Hz to 20MHz. I could not find a signal generators will not do this quickly, at high frequencies, programmably, and synchronously. Therefore, I had build mine from scratch.

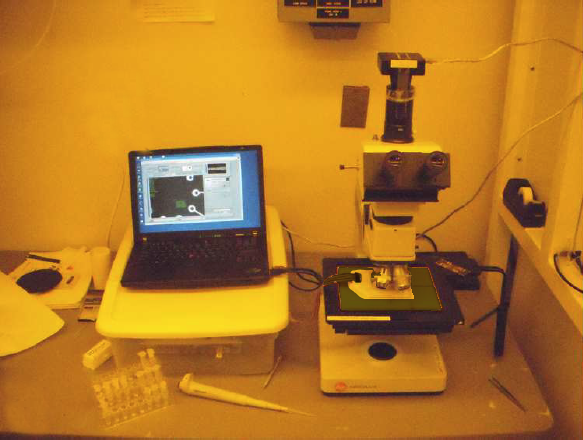

I put the entire electronics assembly on a single PCB board that wrapped around the microscope slide but left room for an upright or inverted microscope to view and track the particles. Everything was controlled from a laptop running LabVIEW, which did all the real-time image analysis and calculated the voltages. Between particles, microscope camera, LabVIEW, and electronic hardware can be thought of as a feed back loop that can be used to hold particles in their locations
When the electrodes are activated, positively polarized particles at locations where we are not controlling the electric field will move toward the electrode edges where the electric field is greatest. Negatively polarized particles will cluster around the center of the array where there tends to be an electric field null. However, regardless of polarizability, particles at locations where we are controlling the electric field will be herded into position against the randomizing effects of Brownian motion.

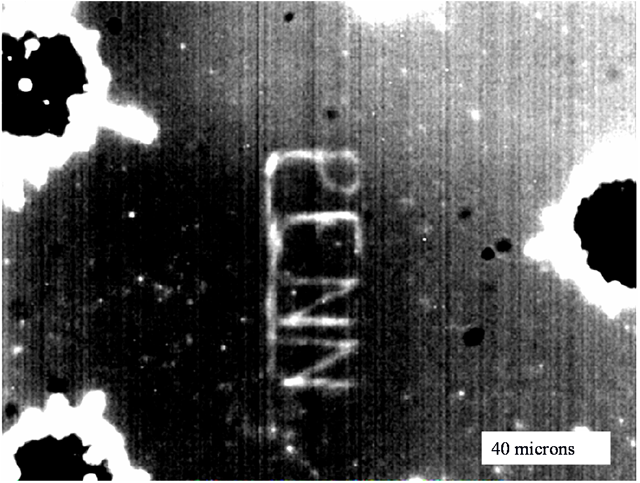

From there we can manipulate the particle. In a relatively dramatic example, I made a gold nanorod spell out PENN. (See figure at top of page)
Engagement (positive polarizability)
Engagement (negative polarizability)
Additionally, I demonstrated that we can manipulate two particles, and even push around a particle that is relatively unaffected by electric field.
Negatively polarized "bulldozer" pushing unpolarized particle.
